5 Port 10/100M Smart PoE Switch With 30W Per Port And Watchdog Function

Switching capacity : 1.0Gbps

MAC table : 2K

MOQ : 1

Brand Name : ONV

Max PoE power : 30W per port

Supply Ability : 500000 pcs/month

Model Number : ONV-H1054PS

Dimensions : 148.4*64.8*35.7mm

PoE standard : PoE+

Place of Origin : China

Payment Terms : T/T,Western Union

Jumbo frame : 4096byte

Forwarding rate : 0.74Mpps @64byte

Port speed : 10/100M

Delivery Time : 2-8 work days

Port count : 5

Certification : CE, FCC, RoHS

Packaging Details : Packaging dimensions: 166*120*39 mm, weight: 0.48kg, Carton dimensions: 518*500*215 mm, 60 pcs/carton, weight: 29kg

Total PoE power : 45W (AC100-160V) / 65W (AC160-240V)

Contact Now

5-port 10/100M Smart PoE Switch

Product Overview

The ONV-H1054PS is a smart PoE switch featuring 4×10/100M RJ45 ports and 1×10/100M uplink RJ45 port. Ports 1-4 support IEEE802.3af/at PoE standards with single-port PoE power up to 30W. The PoE ports include watchdog servo functionality that automatically restarts and restores network communication if port communication fails. With delayed start functionality, ports power on sequentially (within 2 seconds) to prevent excessive current during startup and avoid power overload protection. As a PoE power supply device, it automatically detects and powers standard-compliant powered devices through network cables, making it ideal for wireless APs, IP cameras, VoIP systems, video access control intercoms, and other PoE terminal devices. Perfect for small to medium-sized enterprises including hotels, campuses, parks, banks, hospitals, and factories. Plug-and-play operation with no configuration required.

Technical Specifications

Interface Characteristics
Model	ONV-H1054PS
Fixed Port	4×10/100Base-TX PoE ports (Data/Power) 1×10/100Base-TX uplink RJ45 port (Data)
Ethernet Port	Port 1-5 support 10/100Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode	Store and forward (Full wire speed)
Switching Capacity	1.0Gbps (non-blocking)
Forwarding Rate@64byte	0.74Mpps
MAC	2K
Buffer Memory	570K
Jumbo Frame	4096byte
LED Indicator	Power: PWR (Green), Network: Link (Green)
PoE & Power Supply
PoE Port	Port 1-4
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, IEEE802.3af/at
Total PWR/ Input Voltage	45W/ (AC100-160V) \| 65W/ (AC160-240V)
Power Consumption	Standby<3W, full load<40W \| Standby<3W, full load<60W
Power Supply	Built-in power supply, AC100-160V 50-60Hz, 1.0A \| Built-in power supply, AC160-240V 50-60Hz, 1.0A
Physical Parameter
Operation Temp/ Humidity	-20~+50°C, 5%~90% RH non-condensing
Storage Temp/ Humidity	-40~+75°C, 5%~95% RH non-condensing
Dimension (L×W×H)	148.4×64.8×35.7mm
Net /Gross Weight	0.32kg/ 0.48kg
Installation	Desktop, Wall mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty	1 year, lifelong maintenance

Key Features

10/100M Access

Support for non-blocking wire-speed forwarding
Full-duplex based on IEEE802.3x and half-duplex based on Backpressure
5×10/100Base-TX RJ45 ports for flexible networking in various scenarios

Smart PoE Power Supply

4×10/100Base-TX RJ45 ports support PoE power for security field applications
Compliant with IEEE802.3af/at PoE standards, automatically identifies and powers PoE devices without damaging non-PoE devices
Watchdog function monitors data communication status and automatically restarts PoE when port load crashes
Delayed startup function prevents instantaneous overload and power protection issues

Stable & Reliable

Certifications: CE, FCC, RoHS
Plug-and-play operation with no configuration required
User-friendly panel with LED indicators for P and Link status
Low power consumption, galvanized steel casing with ventilation holes for excellent heat dissipation

Dimensions

5 Port 10/100M Smart PoE Switch With 30W Per Port And Watchdog Function

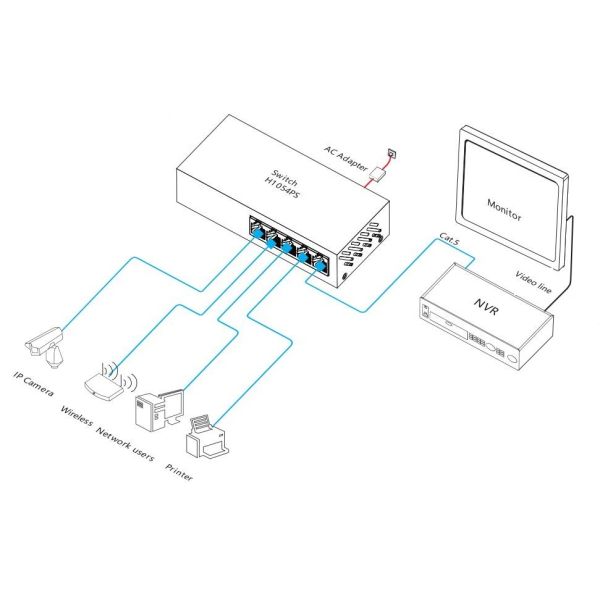

Application Scenarios

Ordering Information

Model	Description	Built-in Power Supply
ONV-H1054PS	Smart PoE switch with 5×10/100M RJ45 ports. Port 1-4 support IEEE802.3af/at PoE standard. Includes watchdog function and delayed start function.	65W

Packing List

Packing List	Qty	Unit
5-port 10/100M smart PoE switch	1	Set
AC Power Cable	1	PC
User Guide	1	PC
Warranty Card and Certificate of Conformity	1	PC
